USER-FRIENDLY HANDLING OF WHEELS IN TALL TYRE RACKS

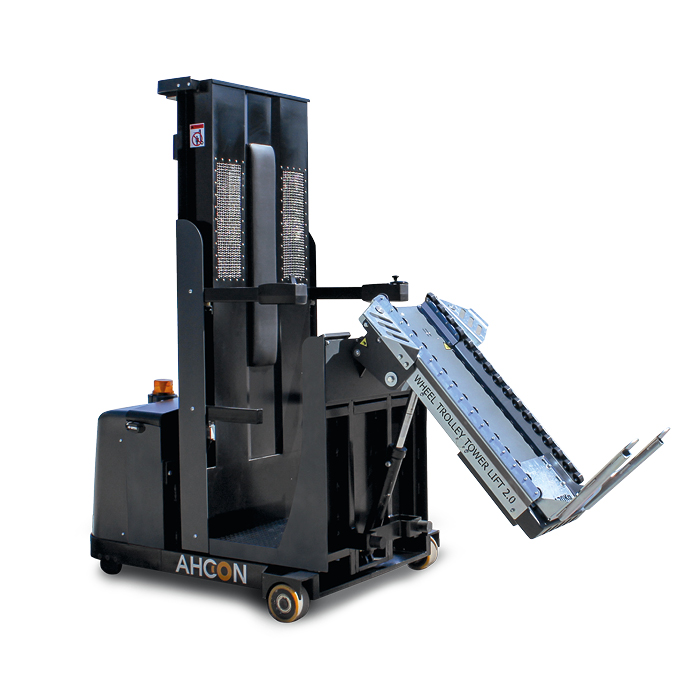

Wheel Trolley Tower Lift is a compact and space-saving truck for the ergonomically correct handling of wheels in extra-tall tyre racks – at heights of up to 6 metres.

Tower Lift has a customised tool at its front which is compatible with our popular Wheel Trolley. The actual handling into and out of the tyre racks is carried out by the use of Wheel Trolleys. The job of retrieving and inserting wheels from and into tyre racks can take place at an efficient pace while allowance is still made for ergonomic considerations.

DIFFERENT MODELS FOR DIFFERENT NEEDS

Wheel Trolley Tower Lift 2.1 exist in different models.

The models differs in battery type and lifting tool – where it is possible to choose between a standard battery and a Lithium battery. The lifting tool comes in a Standard Tool and an Off Road Tool.

Watch a short animation video here featuring the Wheel Trolley Tower Lift:

FEATURES:

  • Entry and exit on both sides
  • Hydraulic function of front tilting tool
  • Equipped with reverse camera and information display
  • Three set speeds
  • Wheels are handled directly on Wheel Trolleys
  • Reduces the needed width for walkways between racks to 1.4 metres
  • Efficient and ergonomic handling of wheels
  • Available both with a standard battery and with Lithium Heat battery package for extra fast charging and 3 years warranty

FEATURES BY USING AF WHEEL TROLLEY TOWER LIFT:

  • Minimal handling of tires and wheels during loading onto and off tire racks
  • Makes it possible to utilize storage facility optimally
  • For ergonomic handling of tires and wheels

DETAILS:

  • Lifting height: 6.0 meters
  • Lifting capacity: Standard Tool: 120 kg / 265 lbs / Off Road Tool: 180 kg / 396 lbs
  • Battery capacity: approximately 200 cycles of operation
  • Battery charging time: Standard: 10 hrs. / Lithium: 3 hrs.
  • Color: Dark grey RAL 7016
  • Driving speed with the basket at low position: 0.8 meters/second
  • Driving speed with the basket at high position: 0.2 meters/second
  • Raising time: 0.2 meters/second

To open our Wheel Trolley Tower Lift catalogue, please CLICK HERE!


OPTIONAL EQUIPMENT

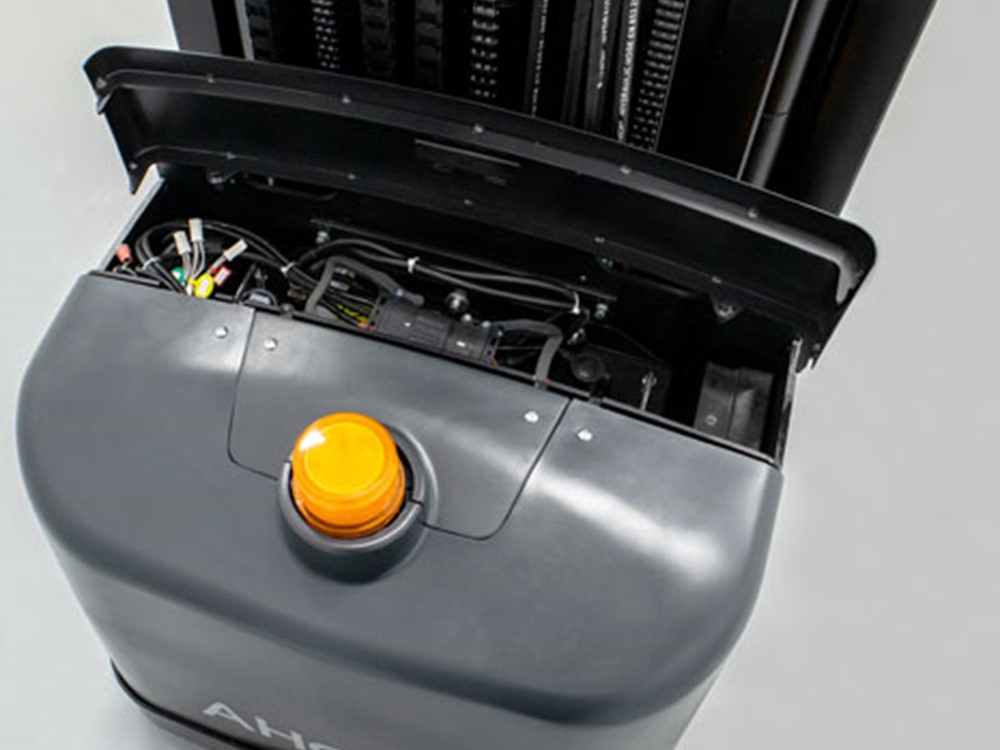

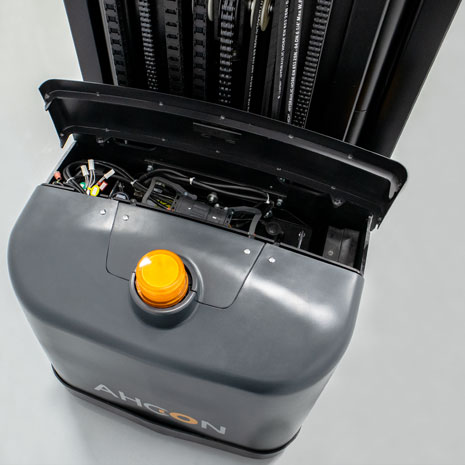

LITHIUM BATTERY

Wheel Trolley Tower Lift is available in a version with Lithium battery, by which you can obtain the advantages of this battery type:

  • Maintenance-free – and no need for replenishing battery water
  • Charging time of just 3 hours – against 10 hours for a standard battery type
  • 3 years warranty
  • Integrated heat system which makes it possible to charge the battery at a room temperature below 0 degrees Celsius
  • No need for “massage” of the battery during periods where it is not used
  • Possible to purchase an extra lithium battery package and thereby avoid charging time

It is possiblie to replace a standard battery with a Lithium battery package on an existing Tower Lift.

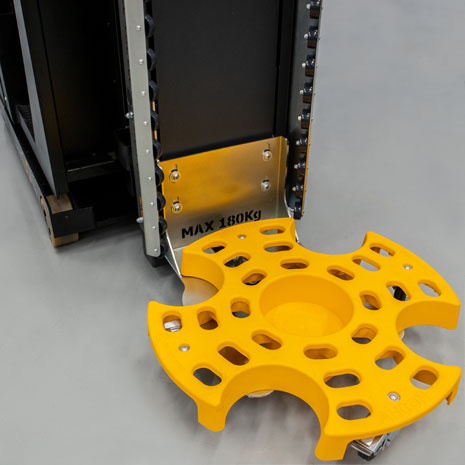

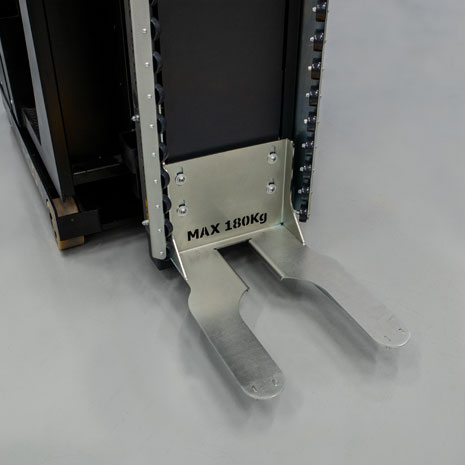

OFF ROAD LIFTING TOOL

For the handling og large wheels in tyre racks the lifting tool for the Wheel Trolley Tower Lift is made in a version that fits the Wheel Trolley Off Road.

Wheel Trolley Off Road measures ø700 mm and has a maximum load of 180 kg / 396 lbs -  and can thereby be used for van- and 4X4 wheels. The Off Road lifting tool can be retrofitted on an existing Wheel Trolley Tower Lift instead of the lifting tool for Wheel Trolleys in standard size.

The Off Road lifting tool also fits the standard Wheel Trolley
